Diameter range: 50mm-508mm.
Colour: Light brown.
Standard Length: 5 and 10 metres.
Temperature range: -150°C to +250°C.
Wall thickness: 0.12mm.
Weight type: Light weight.
Cuff options: N/A.
Flame retardant: N/A.
Anti static: N/A.
Hydrolysis and microbe resistant: N/A.
Material options: N/A.
Pressure: 0.85 bar to 0.02 bar.
Vacuum: 0.32 bar to 0.01 bar.

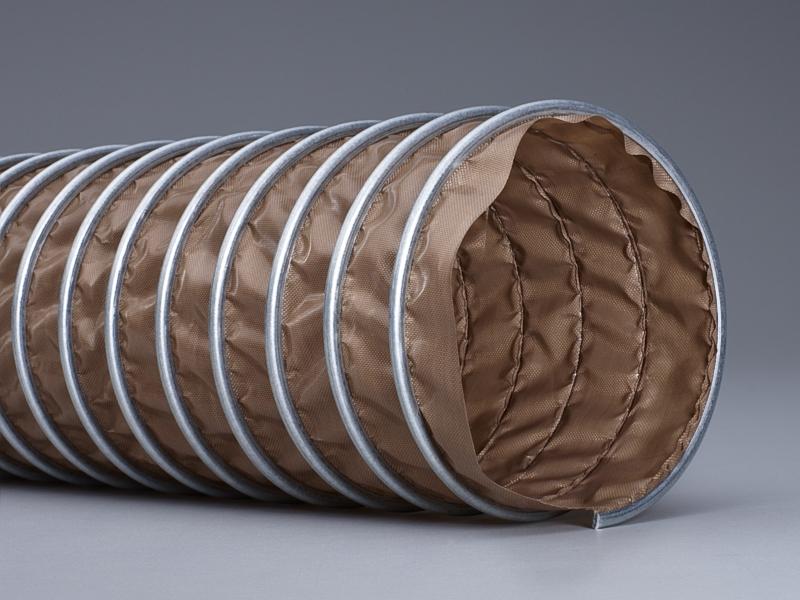

Construction: PTFE coated glass fabric supported by an external galvanised steel helix.
Colour: Light brown.
Diameter range: 50-508mm.
Standard length: 5 and 10 metres.
Temperature range: -150°C to +250°C in a 20°C ambient
Applications: Extraction of aggressive chemical fumes, paint mist and solvent fumes in a wide range of industrial applications.
Properties: Good temperature resistance, very good chemical resistance, external abrasion protection spiral, good compressibility, good UV and ozone resistance, harmless to health.
| NW (mm) | weight (kg/m) | wall thickness (mm) | bending radius (mm) | max. working Pressure (bar) | max. vacuum bar |
|---|---|---|---|---|---|
| 50 | 0.40 | 0.12 | 30 | 0.85 | 0.32 |
| 60 | 0.50 | 0.12 | 36 | 0.68 | 0.22 |
| 76 | 0.60 | 0.12 | 45 | 0.47 | 0.14 |
| 80 | 0.63 | 0.12 | 48 | 0.43 | 0.12 |
| 102 | 0.65 | 0.12 | 60 | 0.30 | 0.08 |
| 110 | 0.70 | 0.12 | 66 | 0.25 | 0.07 |
| 120 | 0.72 | 0.12 | 72 | 0.22 | 0.06 |
| 127 | 0.80 | 0.12 | 75 | 0.21 | 0.05 |
| 152 | 0.90 | 0.12 | 90 | 0.16 | 0.04 |
| 160 | 0.94 | 0.12 | 96 | 0.14 | 0.03 |
| 180 | 1.05 | 0.12 | 108 | 0.12 | 0.02 |
| 203 | 1.21 | 0.12 | 120 | 0.10 | 0.02 |
| 254 | 1.70 | 0.12 | 175 | 0.07 | 0.01 |
| 305 | 2.13 | 0.12 | 210 | 0.05 | 0.01 |
| 350 | 2.30 | 0.12 | 245 | 0.04 | 0.01 |
| 407 | 2.90 | 0.12 | 280 | 0.03 | 0.01 |
| 508 | 3.90 | 0.12 | 400 | 0.02 | 0.01 |
